CHARACTERISTICS
Sailboat, sloop, lifting
centreboard, twin rudders - Model : ATLANTIS 400
Architect :
Gilbert Caroff
- Built by :
Dujardin Icofrance (Louviers - France)
Hull and deck material : steel NAVABORD 639 -
Model year : 1991 / launched : 1994
LOA : 11,83
m - Beam : 4,15 m - Depth : 0,90 m / 2,20 m
Engine :
in-bord diesel Perkins Prima - 50 HP
Belgian flag - Lying alshore
near Halifax (Nova Scotia - Canada)
|
HULL |
 |
|
The hull, made of hot
galvanised steel, is primarily protected by an epoxy coat.
Measures of hull thickness
demonstrate side steel plates 4 mm thick and 8 mm thick for the bottom. |
|
|
|
 |
|
HULL |
|
▪ |
No defect, no rust |
|
▪
|
3-blade propeller
protected by a full cage made of heavy steel tubes |
|
▪ |
8 sacrificial anodes on hull, 4
on the rudders, 1 on propeller shaft |
| |
|
|
STRUCTURE |
|
▪ |
Oversized material throughout |
|
▪ |
Bilges in clean condition |
|
▪ |
Thanks to the fairly efficient
steel protection, only a few minor spots of rust in the bilges
|
|
DECK |
|
|
▪ |
Paint + TBS antislip plates
(a few stains on TBS but still very efficient and perfectly
adherent) |
 |
|
▪ |
Cockpit seats in teak, perfect
condition |
|
▪ |
Plexiglass windows (4 in hull
and 5 around the roof) in excellent condition |
|
▪ |
Goïot hatches (2 in
cockpit, 2 on the coamings,
2 in the front of the roof,
2 on deck) |
|
▪ |
Two cockpit lockers + 1 very
large cockpit storage bin |
|
▪ |
Stainless stell pulpits and
pushpits, bolted through deck, stanchions on
welded holders, pulpits on deck,
each side of mast |
|
▪ |
6 ventilation dorades Vetus |
|
▪ |
4 stainless steel holding bars
on roof |
|
▪ |
Bathing platform + bathing
ladder (also used as boarding ladder
when lying ashore)
|
|
RIG |
|
|
STANDING RIGGING |
|
|
▪ |
Aluminium mast, 2 spreaders
levels, fitted with stainless steel mast steps
2 lower shrouds,
2 intermediates, 2 masthead shrouds, 1 forestay with Profurl roller furling, 1
releasable inner forestay, 1 baby stay, 1 backstay with twin extension to
deck fittings |
 |
|
▪ |
The shrouds are secured by NORSEMAN
fittings at deck level and usual ACMO crimping aloft |
|
▪ |
Aluminium boom,
rigid vang, spinnaker pole |
| |
|
|
RUNNING RIGGING
|
|
▪ |
Front of mast : genoa
halyard, spinakker halyard, staysail halyard, spinnaker pole topping lift |
|
▪ |
Mainsail controls : boom
downhaul, mainsail tension along boom,
automatic reefing system reefs #1 and #2, reef #3, mainsail sheet,
mainsail
travelling car on rail |
|
▪ |
Rope and purchase for centreboard lifting |
|
▪ |
Back of mast : mainsail
halyard, boom topping lift |
|
▪ |
All standing rigging ropes new
June 2008 |
|
▪ |
Except genoa halyard, all
ropes are led aft under dodger
(12 cleats - new 2008) |
|
▪ |
Genoa sheets, spinnakker
sheets, Walder boombrake |
| |
|
|
SAILS |
|
▪ |
Classical mainsail for long
distance cruising, 3 reefs, sail cover, lazyjacks |
|
▪ |
Roller furling genoa with
anti-UV protection |
|
▪ |
Asymetrical spinnaker with
"spinnaker sock" |
|
▪ |
Staysail |
|
▪ |
Strom jib |
|
▪ |
Staysail and storm jib clip on
releasable inner forestay |
|
EQUIPMENT |
|
|
▪ |
Profurl genoa
roller furling system |
 |
|
▪
|
Genoa adjusting tracks Goïot : 2 (with 2 x 2
cars) |
|
▪ |
Mainsail Amiot track and car
system |
|
▪ |
Lewmar blocks (at foot of mast
+ various multi-purpose blocks) |
|
▪ |
Andersen
self-tailing winches
2 x ST 46 (cockpit) - 2 x ST 40 (roof), 1 x ST 28 (mast) |
|
▪ |
12 Spinlock
clamcleats on roof, under dodger (new 2008) |
|
▪ |

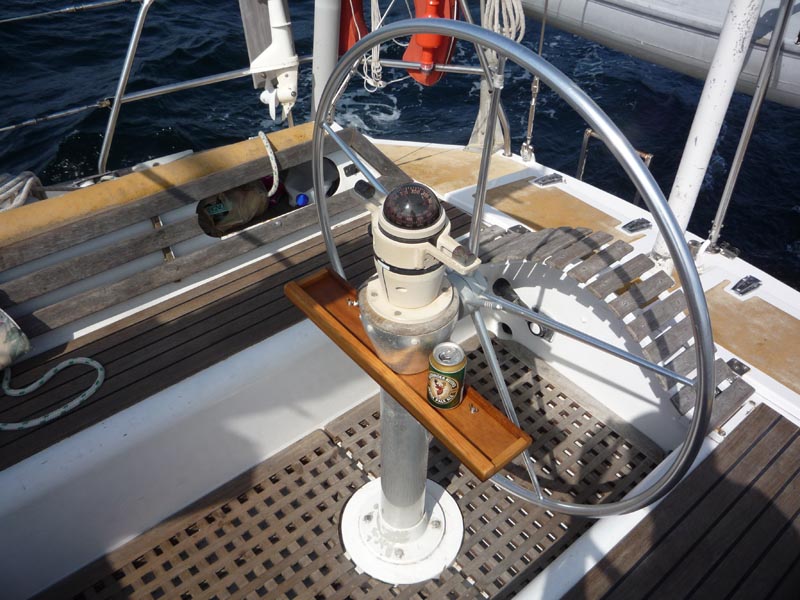

Steering wheel
with cables transmission
Rigid connecting link between both rudders |
|
▪ |
Emergency tiller |
|
ROPES AND MOORINGS
|
|
|
▪ |
GDI 24 V - 1000
W anchor winch |
 |
|
▪ |
Primary mooring
1 anchor CQR 25 kg – 60 m chain Ø 10 + 60 m rope Ø 14 |
|
▪ |
Secondary mooring
1 anchor
FOB 16 kg – 20 m chain Ø 10 + 30 m rope Ø 14 |
|
▪ |
Mooring cleats : 6 (including
2 stainless bollards forward) |
|
▪ |
Mooring ropes and fenders
|
|

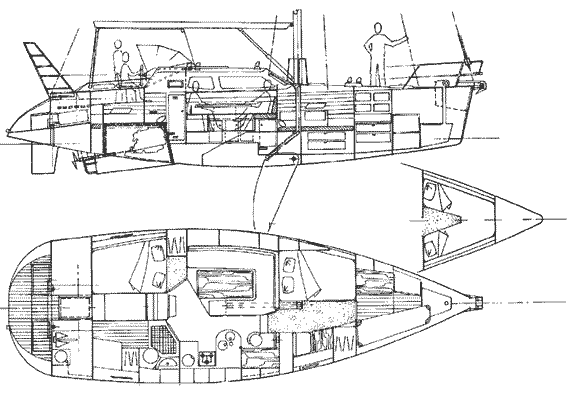

INTERIOR LAYOUT
|
|
|
Forepeak |
Mooring locker ▪ Workspace
with numerous lockers, bench, vice ▪ Hanging lockers |
 |
|
Central corridor |
Lavac vacuum toilet to
starboard ▪ Cabin with double bed to port ▪ Lots of lockers,
cabinets, etc. |
|
At deck saloon
level |
Galley to starboard (2
burners +
cooker, 2 sinks, fridge)
Main saloon with foldable table to port |
|
Entrance area |
Bathroom (shower,
sink) to starboard
Chart table to port |
|
Aft |
Cabin with double bed,
accessible either from
starboard or from port, bunks, lockers and
cabinets
|
|
Floor covered with Pirelli
rubber (blue colour) |
|
TECHNICAL
|
|
|
|
|
|
ELECTRICITY |
 |
|
▪ |
4 Trojan batteries (new
2006) 6 V / 170 Ah (serial connected to provide 24 V DC) |
|
▪ |
2 engine dedicated batteries
12 V / 110
Ah (parallel connected) |
|
▪ |

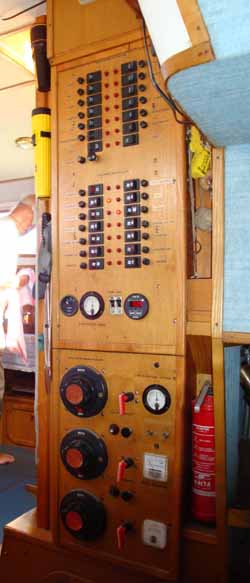

Electrical main board 24
Volt with switches and breakers |
|
▪ |
Muti-function Linksys battery
monitoring system |
|
▪ |
Separate circuits breakers for positive
and negative |
|
▪ |
2 engine driven alternators : 1
x 12 V + 1
x 24 V |
|
▪ |
Converter 24 V DC - 12
V DC |
|
▪ |
Inverter 24
V DC - 220 V AC |
|
▪ |
Battery charger through shore
power connection : 110/220 V
for service battery pack (new 2005) |
|
▪ |
Aerogen-4 windmill 24 V DC
+ regulator (new 2006) |
|
▪ |
4 solar panels 51 W Kiocera
with regulator (regulator new 2009),
hinged on orientable rear mountings |
|
▪ |
Alternator 24 V DC belt driven
from propeller shaft |
|
▪ |
The complete electrical
equipment in mast (circuitry + lights) is new 2008 |
| |
|
|
WATER
|
|
▪ |
Stainless steel tank 400 l |
|
▪ |
Pressurised fresh water from Flojet
pump (new 2009) + expansion tank |
|
▪ |
Microfibres filter + charcoal
filter on fresh water distribution |
|
▪ |
Hot water tank |
|
▪ |
2 foot operated fresh water
pumps |
|
▪ |
Sea water pump in
galley |
| |
|
|
DRYING |
|
▪ |
Restricted number (6) of
seacocks welded to hull : toilet sea water
intake, engine sea water intake (including
engine startup breaker system),
toilet outlet, sea water pump intake, galley and bathroom sinks common
discharge + 1 spare unallocated seacock |
|
▪ |
Locking by
polyethylene 1/4 turn seacock valves |
|
▪ |
Bilge pumps : 2 x manual
Henderson double effect (cockpit + saloon),
2 x electrical (fixed + portable) |
|
▪ |
Shower discharge pump with
filter and automatic water level switch |
 |
|
|
|
|
GALLEY |
|
▪ |
Propane circuit :
rigid copper tubing with safety valve, gas bottle 13 kg
in specific
locker in transom |
|
▪ |
ENO cooker 2 burners +
oven |
|
▪ |
Refrigerator (new 2007) with Danfoss
24 V compressor and high capacity evaporator |
|
▪ |
Double sink with
mixing hot/cold water tap |
|
|
|
|
NAVIGATION & ELECTRONICS |
|
▪ |
2 GPS/chartplotter
(Navionics) independent systems : Raymarine system including radar + Geonav
system |
|
▪ |
Raymarine C-70
(2008) :
GPS, radar and chartplotter at chart table |
|
▪ |
Geonav 4C-XS (2006) :
GPS and chartplotter under dodger, repeater 12" screen beyond hatch, visible
and accessible from cockpit |
|
|
▪ |
Autohelm ST 7000
autopilot complete with electromechanical drive directly connected to
steering quadrant - interfaced with Geonav chartplotter |
 |
|
▪ |
Autohelm
ST 50 instrumentation
Cockpit dials : loch, depth,
wind speed,
wind direction |
|
▪ |
VHF Shipmate RS 8110 |
|
▪ |
BLU
Sony radio receiver |
|
|
|
|
COMFORT |
|
▪ |
HiFi JVC stereo system 12 V (CD,
cassettes, radio)
Loudspeakers : 2 x saloon + 2 x cockpit |
|
▪ |
Multisystems Aiwa television -
Mast head aerial (new 2008) |
|
▪ |
Sharp multisystem VCR |
|
SAFETY
|
|
|
▪ |
Zodiac
Class 2 liferaft in container, 8 pax (new 2006 - revised 2009) |
 |
|
▪
|
Flares |
|
▪ |
Fire estinguishers |
|
▪ |
IOR perch and horseshoe buoy
with automatic light |
|
▪ |
EPIRB Kannad locating
satellite beacon |
|
▪ |
Lifesling for man overboard
retrieval |
|
▪ |
Autopilot acting
directly on wheel quadrant |
|
▪ |
Emergency manual tiller |
|
▪ |
Mast climbing steps |
|
▪ |
Retaining pulpits at mast
level |
|
▪ |
Walder boombrake |
|
▪ |
Lifelines |
|
▪ |
All line controls
led aft under dodger (12 clam cleats) |
|
▪ |
Automatic reefing
system reefs #1 and #2 |
|
▪ |
Staysail on inner
removeable forestay |
|
MISCELLANEOUS
|
|
|
▪ |
Cockpit roof dodger |
 |
|
▪ |
Sun awning (new 2007) |
|
▪ |
Cockpit table - cockpit
smaller tablet |
|
▪ |
2 wind scoops ("phantoms") |
|
▪ |
Davits with
purchases for dinghy lift, also supporting orientable solar
panels |
|
▪ |
Reflex (gasoil) heater |
|
▪ |
Semi-rigid Caribe C 9
inflatable dinghy |
|
▪ |
2-stroke Honda 4
HP outboard engine for dinghy
|
|
ENGINE |
|
|
▪ |
Diesel Perkins
Prima, fresh water cooled through heat exchanger, 50 HP |
 |
|
▪ |
Inverter |
|
▪ |
Propeller shaft watertight
system from rotating joint system (new 2006) |
|
▪ |
3 blade propeller |
|
▪ |
Gasoil tank capacity : 280 l
|
|
